ABI 30-60A Brake Assembly

$937.00
/

Details

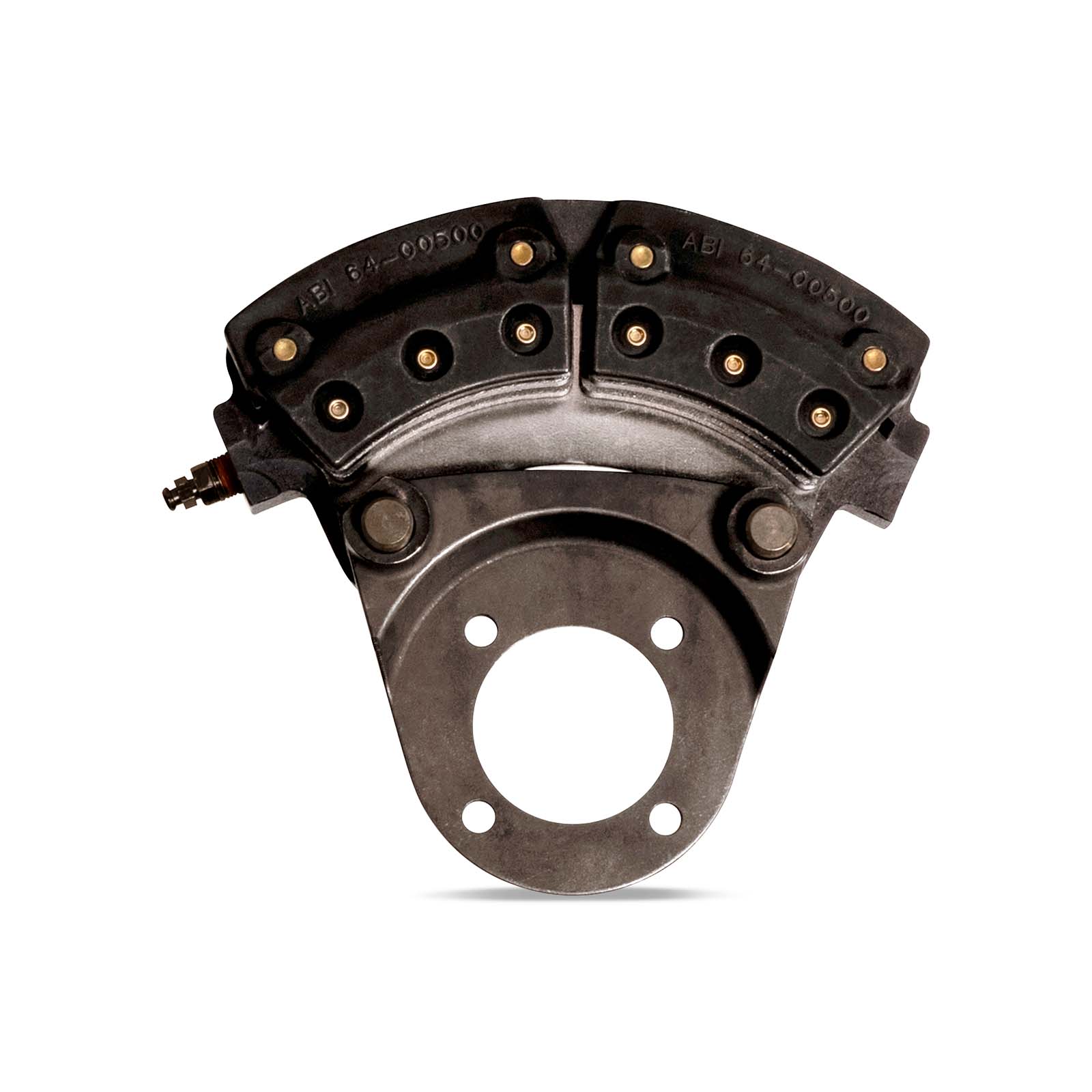

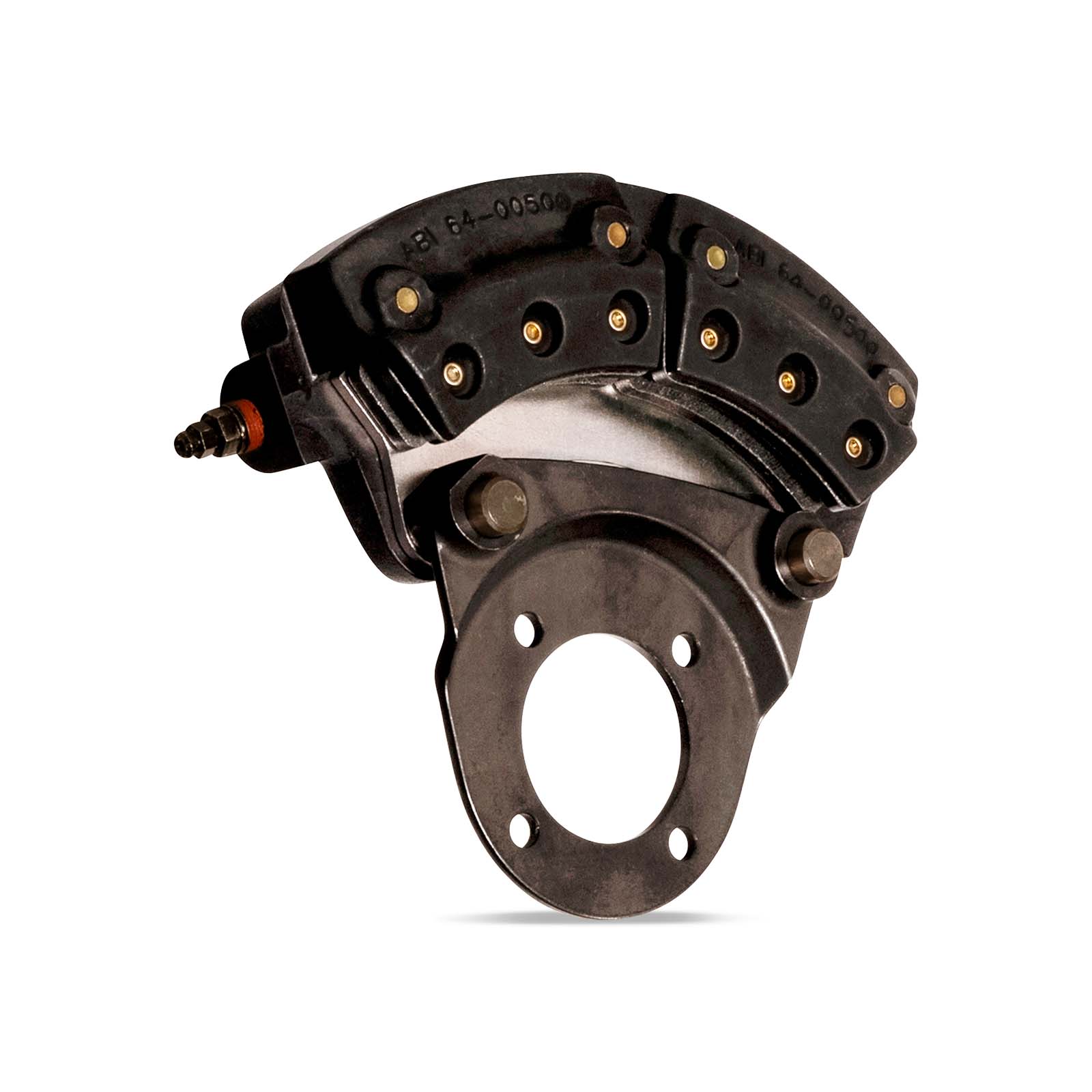

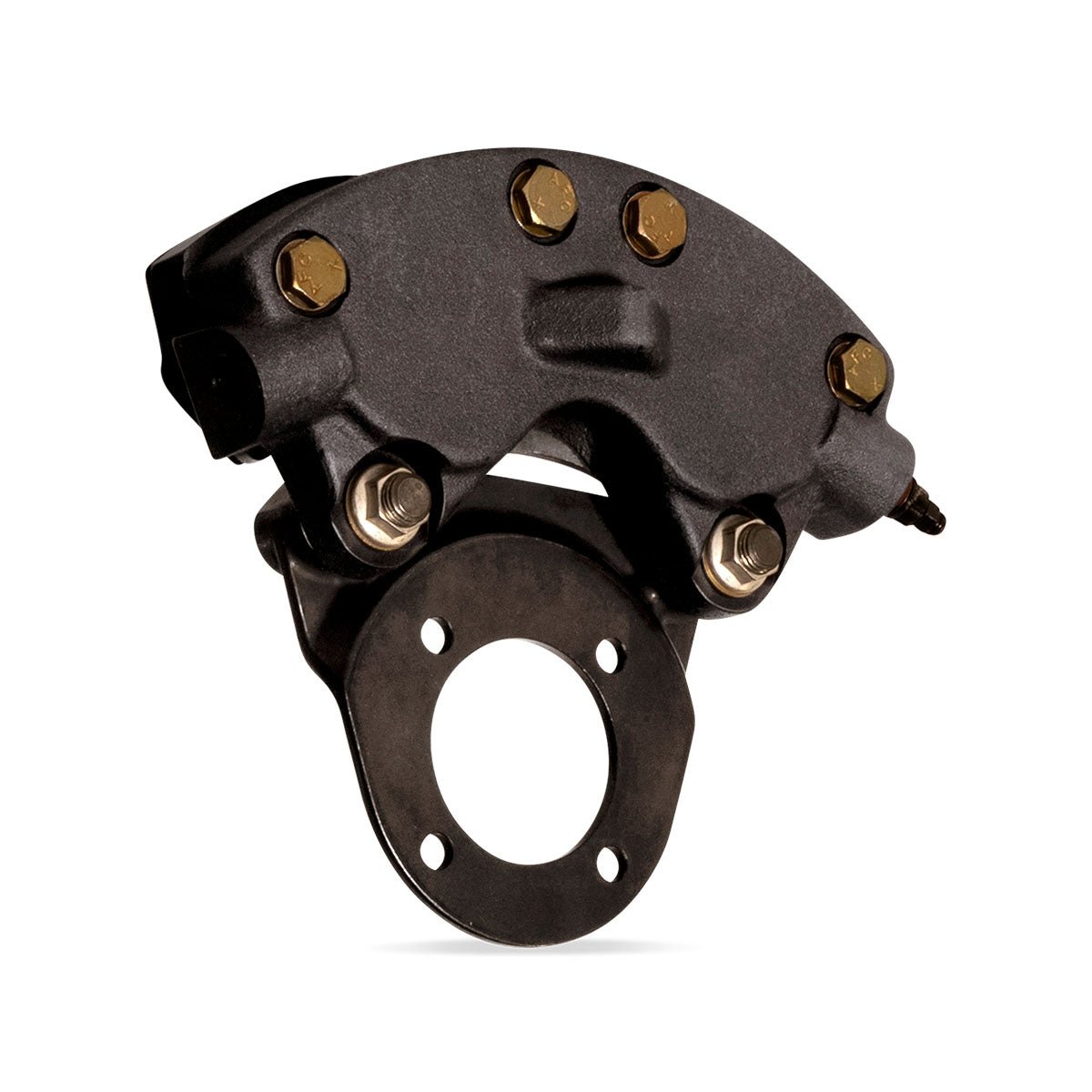

The ABI 30-60A Brake Assembly is a high-performance and durable brake system designed for use with Alaskan Bushwheel (ABI) 199-71 wheel and brake kits. It also serves as a PMAd replacement for the Cleveland 30-60A brake assembly, offering a cost-effective solution for enhanced braking performance. Featuring a single-piston caliper made of lightweight yet durable aluminum, a steel anchor plate for added strength, and high-friction brake pads, it ensures excellent stopping power, even in adverse conditions.

Overview

The ABI 30-60A Brake Assembly stands as a robust and high-performance solution tailored to meet the braking requirements of aircraft equipped with Alaskan Bushwheel (ABI) 199-71 wheel and brake kits, also serving as a PMAd replacement for the Cleveland 30-60A brake assembly. This assembly comprises essential components, including a single-piston caliper made from lightweight and durable aluminum, an anchor plate crafted from robust steel to enhance strength, and high-friction brake pads ensuring exceptional stopping power, even in challenging conditions.

Ease of installation and maintenance are key advantages of the ABI 30-60A Brake Assembly, making it a user-friendly choice for aviation enthusiasts and professionals alike. Additionally, it holds FAA/PMA approval, offering compatibility with a variety of aircraft models.

Technical Specs

Features

Single-Piston Caliper: The ABI 30-60A Brake Assembly features a single-piston caliper made of lightweight yet durable aluminum, providing exceptional stopping power during aircraft landings and ground operations.

Anchor Plate Strength: Crafted from robust steel, the anchor plate adds significant strength to the brake assembly, ensuring reliability even in challenging conditions and heavy use.

High-Friction Brake Pads: The inclusion of high-friction brake pads ensures superior braking performance, contributing to increased safety and control during aircraft operations.

Ease of Installation and Maintenance: This brake assembly is user-friendly, with straightforward installation and maintenance procedures, reducing downtime and operational hassles for aircraft owners and maintenance teams.

Readily Available Parts: The ABI 30-60A is backed by an inventory of readily available maintenance parts, simplifying the process of replacing and rebuilding your brakes as needed.

FAA/PMA Approved: With FAA/PMA approval, the ABI 30-52N Brake Assembly is compatible with a wide range of aircraft models.

Technical Specs

Directly Replaces Part Number
30-60A
Compatible Wheel and Brake Kit
ABI-199-71
Compatible Axle Size
1.25"
Brake Assy Weight
2.48 LBS

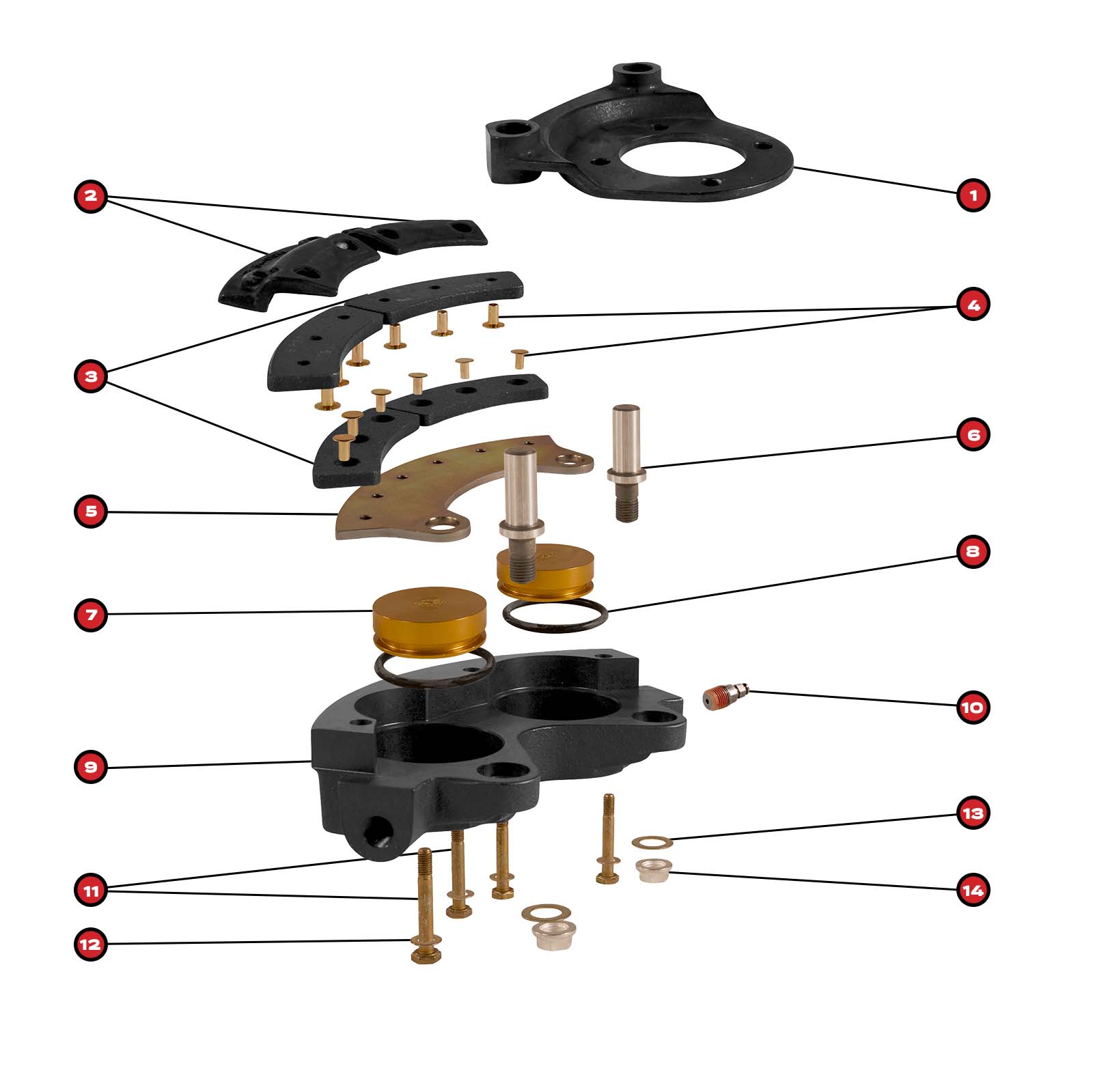

Replacement Parts

Brake Anchor Plate $184.00
Brake Backing Plate $115.00
APS66-10600 Brake Pad $10.50
APS66-10500 Rivet $0.52
Brake Pressure Plate $58.70
Brake Anchor Bolt $78.20
Brake Piston $20.70
MS28775-222 O-Ring $2.55
Brake Cylinder $350.00
Brake Bleeder $4.78
Bolt $1.41
AN960-416L Washer $0.08
AN960-616L Washer $0.20
Nut $6.44
