Alaska Gear Company Experimental PSTOL Flap Kit -

Experimental PSTOL Flap Build Sheet

Name: Experimental PSTOL Flap Build Sheet
Brand: AFAK
SKU: 4752103
Price: 8795.0 USD
Availability: InStock

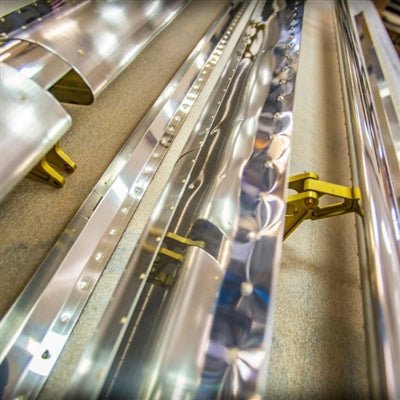

Performance STOL Flaps – an advanced solution meticulously engineered to elevate short landing performance for seasoned STOL pilots. Our cutting-edge "slotted" or "fowler" two-piece flaps redefine aircraft capabilities by optimizing wing camber and angle of attack during glide path deployment. Experience heightened visibility with reduced deck angles, decreased stall speeds, and enhanced drag and lift. These precision-crafted flaps unlock unparalleled aviation potential.

PRINTABLE BUILD SHEET

Regular price$8,795.00

Wing Chord Length

Standard Chord

Deep Chord

Hangers

2 - Flap Length: Less than 80"

2 - Flap Length: 81" to 120"

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Wing Reinforcement Kit

None

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Wing Reinforcement Kit

None

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Wing Reinforcement Kit

None

Single Driver $415.00

Double Driver $415.00

Build Sheet Instructions

Chord Length

The chord length of a wing is the distance between the leading edge and the trailing edge of the wing, measured parallel to the normal airflow over the wing.

Standard Chord Length - 15"
Deep Chord Length - 17"

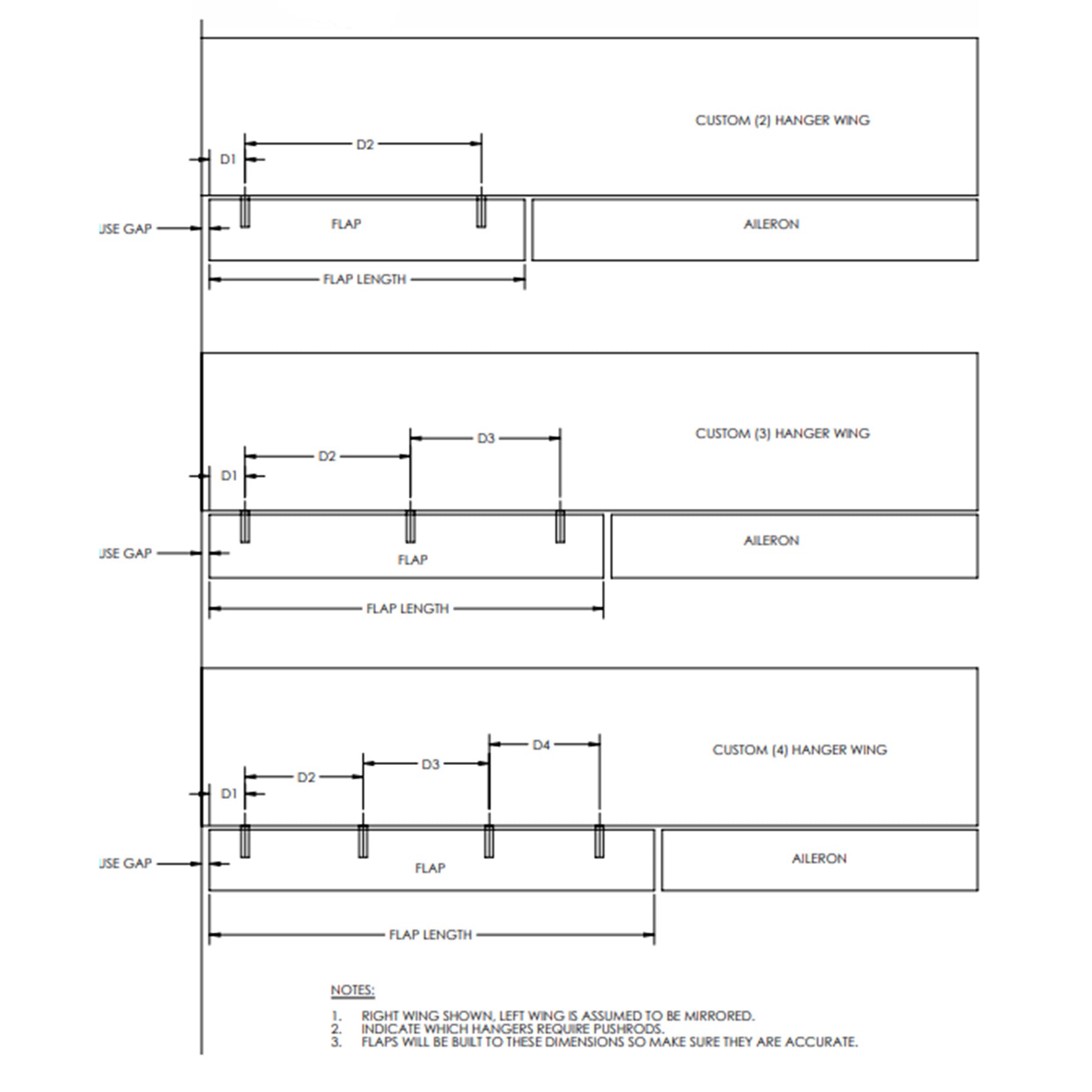

D Measurments

D1 is the distance between the edge of the flap and the center of Hanger 1.
D2 is the distance between the center of hanger 1 and the center of hangar 2.
D3 is the distance between the center of hanger 2 and the center of hangar 3.
D4 is the distance between the center of hanger 3 and the center of hangar 4.

The Number of Drivers Per Flap

Indicate whether the flap needs a single or a double driver.

Indicate Where the Bellcrank is located

List each Hanger number seperated by a comma to indicate which of the hangers need bellcrank/driver/pushrod.
Hanger 1 is the hanger closest to the fuselage.
Example: ( Hanger 1, Hanger 3 )

Notes

Right Wing Shown in diagram. Left wing assumed to be mirrored.
4-hanger flaps cannot be "split", two 2-hanger flaps must be purchased.
Experimental flaps purchase includes required mounting hardware.
We do not recommend flaps longer that 120", contact us to discuss further if you would like to order flaps longer that 120".
Flaps will be built to these dimension so make sure they are accurate

Flap Length

Drivers Per Flap

Indicate Which Hangers Need Push Rods

Aircraft N#

I acknowledge this product will require an additional freight shipping quote after checkout.
