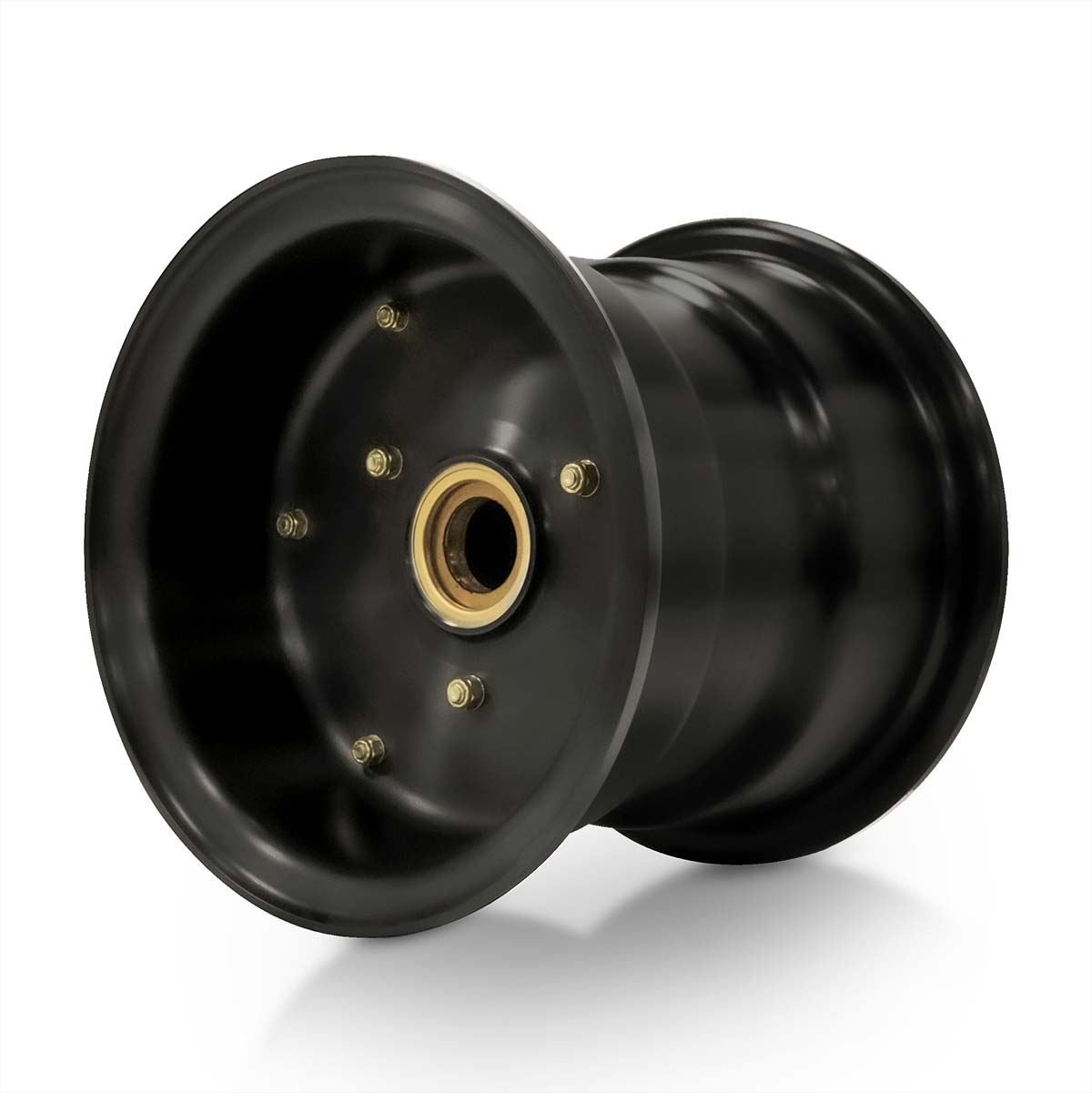

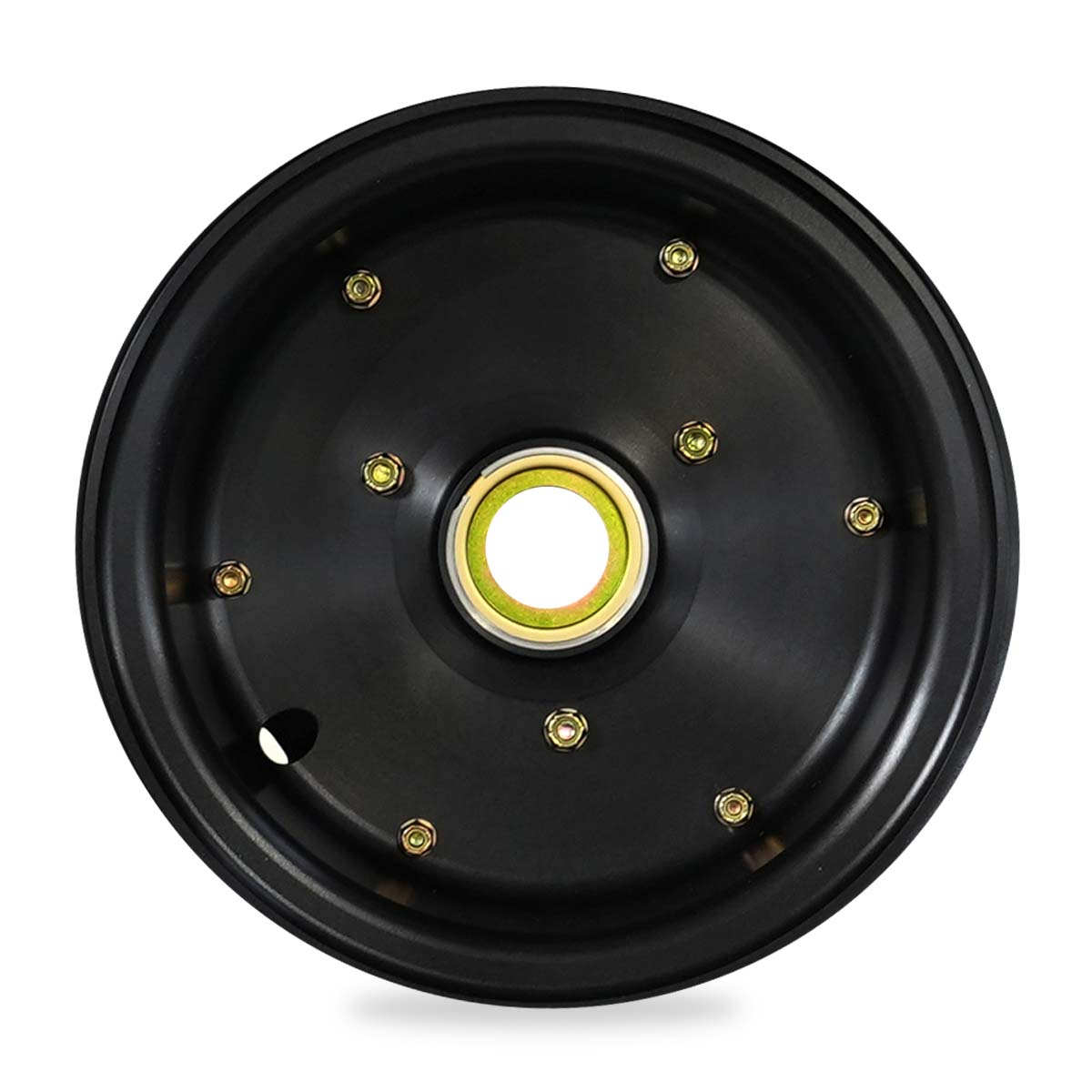

ABI 10x10 Wheel Assembly

$1,895.00
/
Axle Size

Details

The ABI 10x10 wheel assembly is compatible with 29" Airhawks or 8.50x10s, equipped with either 4 or 6 plies. They are fabricated with integrated bead-locking grooves, which prevent slippage and enhance overall safety.

Overview

The ABI 10x10 has redefined reliability and performance in the aviation industry. This innovative product is preferred among aircraft owners looking for top-tier quality for their 29" Airhawk tires or 8.50x10s with 4 or 6 plies. Notably, the ABI 10x10 Wheel Assembly is a substantial improvement over the older Gar Aero adapter.

The Gar Aero adapter, developed in the early 1990s, allowed mounting a 29-inch Airhawk tire on a 10-inch wheel. This adapter consisted of two aluminum plates bonded with epoxy, featuring a lip fitting into the wheel and a beadlock ring to secure the tire. While it served as a crucial solution for aircraft using Airhawk tires, it had limitations. Firstly, being a bonded assembly, it proved challenging to remove and replace when needed. Secondly, the adapter could flex under heavy loads, resulting in unwanted vibration and tire wear. Lastly, compatibility issues with some 10-inch wheels posed additional challenges.

In contrast, the ABI 10x10 Wheel Assembly offers several significant advantages. This bolt-on assembly simplifies removal and replacement, eliminating the difficulties associated with bonded assemblies. The ABI wheel's superior stiffness reduces vibration and minimizes tire wear, improving overall performance and safety.

Technical Specs

Features

Reinforced Beadlock System guarantees tire security, preventing slippage and enhancing overall safety.

FAA/PMA Approved: This wheel assembly is fully approved by the FAA/PMA, meeting stringent aviation standards for safety and reliability.

Machined surfaces specified to fit 29" Airhawks and 8.50x10 tires.

Bolt-on design affords effortless installation and replacement while obviating the difficulties of using bonded adapters.

Expanded bearing surface delivers superior durability, increased load-bearing capabilities, and reduced friction-related wear.

Protect Against Water and Salt: Constructed with corrosion-resistant aluminum guarding against damage from water and salt, making it suitable for aircraft operating in coastal and undeveloped locations.

Technical Specs

Part Number
ABI-1010
Wheel Diameter
10-Inch
Axle Size
1.25" or 1.5"
Brake Disc Bolt Configuration
3-Bolt Brake
1.5" Axle Brake Disc
3-Bolt (164-03601)
1.25" Axle Brake Disc
3-Bolt (164-06700AB)
1.5" Axle Wheel Assy Weight
16.8 LBS
1.25" Axle Wheel Assy Weight
16 LBS

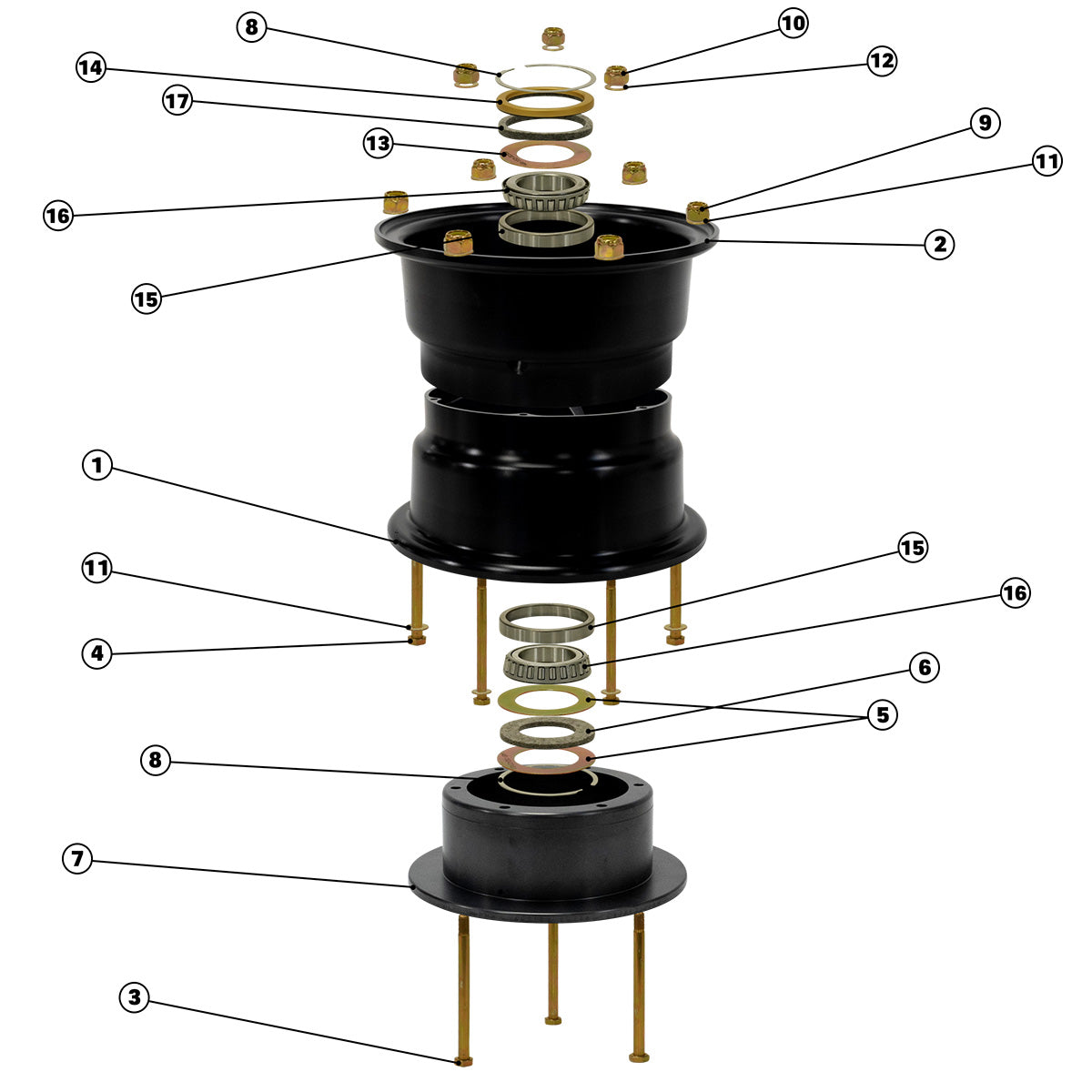

Replacement Parts

10x10 Inner Wheel Half $694.00
10x10 Outer Wheel Half $721.00
Wheel Bolt (AN5-36A) $4.45
Bolt (AN4-35A) $2.30
Seal Ring (ABI-153-00400) $12.70
Felt Grease Seal (ABI-154-01300) $9.20
3-Bolt Brake Disc | 1.5" Axle $283.00
3-Bolt Brake Disc | 1.25" Axle $185.00
Retaining Snap Ring (ABI-155-00100) $10.40
Locknut (MS21044-N5) $0.60
AN960-416L Washer $0.08
AN960-516L Washer $0.14
Seal Cup (ABI-153-01500) $17.30
Seal Ring (ABI-153-00300) $11.50
Bearing Race $18.40
Bearing Cone | 1.5" Axle $23.50
Bearing Cone | 1.25" Axle $23.20
Felt Grease Seal (ABI-154-00300) $8.05
